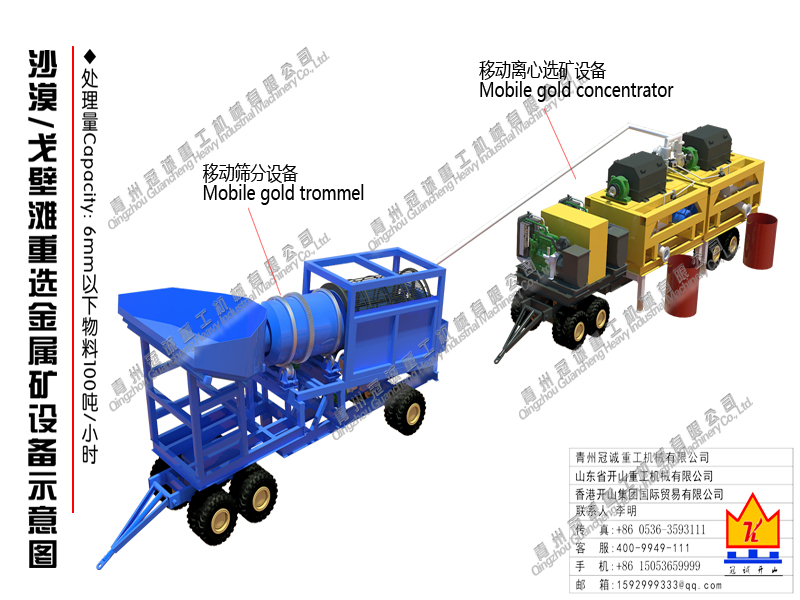

【移动式水套离心机设备组合简介】
本套设备为选砂金机械移动卧式水套离心选矿组合,6mm以下物料处理量每小时100吨,是青州冠诚重工机械有限公司根据用户实际需求及多年选金经验独立研发设计制作而成,具有移动灵活方便、操作简单、故障率低、维护保养方便等特点。
本套选金矿设备适用于物料比重大于4的金、铅锌、锡等重金属矿的选取。
该砂金设备主要优势:
- 本选砂金机械移动灵活方便,可以随时更换工作场地。
- 本选砂金机械采用了沙泵+缓冲箱的进料方式,在配合其它淘金设备时无需寻找高低落差、搭建平台。
- 本选砂金机械可以配合多种其它的淘金设备使用,如振动溜槽、鼓动溜槽、抽沙船等,提高处理量与回收率。
- 本选砂金机械可轻松改变进料方式:可以把缓冲箱换成大料斗进料方式,安装轻松方便。
- 本选砂金机械卧式全自动排矿水套离心机在淘金车上使用时工作可靠、稳定,并且由PLC电脑全自动控制,极大的提高了工作效率。
- 本选砂金机械移动卧式水套离心选矿车附带两种上料系统,两种上料系统可以简单方便的更换:沙泵+缓冲箱上料方式;‚大料仓上料方式;其中大料仓上料方式可以使用挖掘机或装载机上料。本砂金提取设备单车可以单独工作,适合经常需要移动的选金场合。
Brief introduction
This set of gravity separating plant is mobile horizontal concentrator work plant,≤6mm material work capacity 100ton/hour,is newly design and update with customer’s actual inquiry and the experience with gold separating,it can be moved and operating very easily with low failure and easy maintance etc. This plant is for materials such as gold,tin,lead zinc ore etc.
The main advantage:
- Easily moved and the worksite change
- With feeding type of sand pump+input speed reducing box,if work with other mining plant,no need of seeking drop in vertical level and laying foundation
- Can work well with other mining machines,such as vibrating sluice,pulsating sluice,gold dredger etc to high recovery
- The feeding type can be changed easily to be hopper,the installation need very little human work.
- The horizontal gold concentrator can be worked very well on truck chasis and steady,automatic controlled by PLC with more efficient
- This plant with two feeding systems which can be replaced simply and conveniently: (1) feeding type of sand pump and input speed reducing box; (2) feeding type of feed hopper; can be used excavator or loader to feed. This plant can work alone or with other mining plants and especially worksite that often need to be moved
【移动式水套离心机设备组合技术参数】
Detail parameter
名称 Production Name |
规格 |
功率 |
数量 |
单价 |
总价 |
备注 |
移动筛分设备 |
进料斗Feed hopper 1套 |
45 |
1套 |
不含水泵、水泵管道与线缆 |
||
移动离心选矿设备 |
底盘Truck chasis自制重型汽车底盘,四轴16条轮胎,含牵引&转向系统 配电箱Electric box:1套 |
59.5 |
1套 |
不含水泵、水泵管道与线缆 |
||
输送管道 |
6寸沙泵管道 Pipes for 6inch sand pump |
- |
10米 |
|||
强力管箍 |
6inch |
- |
2个 |
|||
输送管道 |
4寸水泵管道 Pipes for 4nch sand pump |
- |
300米 |
|||
管道接头 |
4inch |
- |
60个 |
|||
强力管箍 The clamp for pipe |
4inch |
- |
120个 |
|||
主水源泵 |
离心泵Centrifugal pump |
-
|
1台 |
|||
总功率 |
约110KW |
